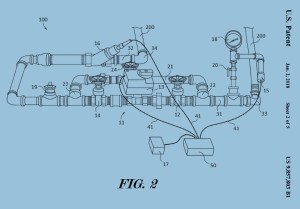

Patent 9,857,803 PIPING HARDWARE ARRANGEMENT
WATER DIMMER is a Patented device (US 9,857,803) used to achieve water conservation in open loop, domestic, potable water supply systems.
The hardware is listed below. The hardware will be installed on the main water line into the home, downstream of the local water utility flow meter and upstream of the first takeoff line. No other equipment is needed in other locations for WATTER DIMMER operation for a single family home. The software will consist of all necessary configuration and programming to receive, store, process, generate, analyze and display all water pressure, water flow, ambient air temperature and control valve position analog input/output signals within a micro programmable logic controller and/or mini web server. The software will also be capable of displaying and tracking alarms for high or low process values and sending email alerts. The software will also have ability to characterize a specific event, such as turning on the kitchen sink tap, with water pressure / flow / control valve position data, over a specified time interval and store the characterized event. The characterized event will be come part of a database of such events and will be used for analyzing water usage patterns and recommending water conservation techniques.
Item & Description
11 Main Pipe ½ inch dia.
12 Inlet Isolation Valve ½ inch
13 Control Valve ½ inch
14 Outlet Isolation Valve ½ inch
15 Pressure Transmitter ¼ inch tap
16 Flow Meter ¾ inch dia. 0-15 gpm
17 Ambient air Thermocouple 40 F – 120 F
18 Inlet Pressure gauge ¼ inch tap 0-200 psig
19 Provision -outlet pressure gauge ¼ inch tap 0-200 psig
21 Bypass Pipe ½ inch dia.
24 Bypass Isolation Valve ½ inch dia.
50 Micro Programmable Logic Controller

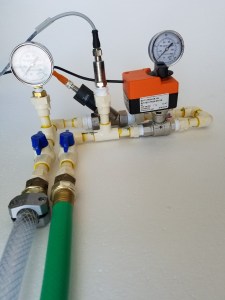

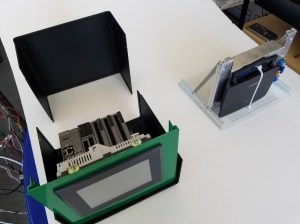

Current Prototype III
Functions/Features & Benefits
CONSERVATION
• Manual flow reduction capability
• Manual pressure reduction capability
• User behavior change evaluation
• Device change evaluations against state-of-the-art EPA Water Sense standards
• Flow reduction calculations
• Conservation suggestions through AI learning
• Cost saving estimation
• Payback period estimation
• Hot water management with two track system
• Energy reductions (hot water systems)
• Energy cost savings (hot water systems)
• Single track or multitrack systems
• Track lawn sprinkler/irrigation operation
• Track greenhouse /garden watering
• Track swimming pool water consumption
• Conservation programs for multi – unit residential buildings
• Conservation programs for commercial buildings
• Conservation programs for institutional buildings
• Conservation programs for golf courses
• Conservation programs for agricultural irrigation
• Conservation programs for industrial facilities
AUTOMATION
• Real time monitoring of water flow, pressure and ambient temperature
• Real time control of water flow and pressure
• Automatic flow reduction capability
• Automatic pressure reduction capability
• Schedule events/reports on daily, weekly or monthly basis
• Presents continuous graphical displays
• Track/count occurrences of events
• Provides extensive data logging capabilities
• Provides water data for local water utilities water management programs
• Flow/pressure characterization of each device/outlet
• Contribution to overall water reduction
• Remote operation over the internet from smart phone or tablet
PROTECTION
• Water leak detection
• Water pipe freeze protection
• Local panel alerts for high water pressure, high water flow, high ambient air temperature, low water pressure, low ambient air temperature and closed control valve position
• Email alerts for high water pressure, high water flow, high ambient air temperature, low water pressure, low ambient air temperature and closed control valve position
• Flow loss estimation
• Remote water shut off capability from smart phone or local panel
• Water damage mitigation
• Homeowner insurance reduction potential
